12m Aerial Platform

Brand Name : SIVGE

Model Number : GTWR8-2008/ GTWR10-2010/ GTWR12-2012

Certification : CE/ISO9001/ISO14001/OHSAS18001

Place of Origin : China

MOQ : 1 unit

Price : USD 4000- 8000 / Units

Payment Terms : D/P, L/C, T/T

Supply Ability : 2000 units per month

Delivery Time : 7-30 working days

Packaging Details : steel pallets for FCL; plywood case for LCL

name : trailer mounted Aerial Work Platform

Max.working height : 10/ 12/ 14 meter

Rated load/capacity : 300kg

Size of platform : 1200*600mm

Color : According to request

Max. platform height : 8/10/12 M

Contact Now

6-14 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform lift aerial work platform

Download Catalog: R20 double mast 8-12m.pdf

Specifications

10 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform lift aerial work platform

Manufacturer SIVGE
Country of origin China
Model GTWR8-2008/ GTWR10-2010/ GTWR12-2012
Max. Working height 10/ 12/ 14 m
Max. Platform height 8 /10/ 12m
Platform capacity 300kg
Platform dimension L1200×W600
Stored height 1960mm
Stored length 2550mm
Stored width 1100mm
Machine weight about 720kg
Power supply

DC24V with rechargeable battery

Power input 1.2kw
Dual control Platform and base control
Standard EN280

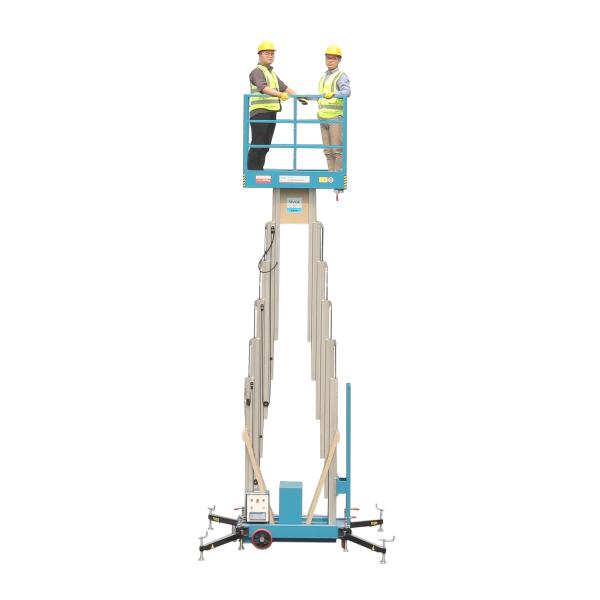

Photos as below;

12m Aerial Platform

12m Aerial Platform

Product features

  • Overload limit
  • Double safety protection with leveling stabilizers and outriggers support
  • Hoist points at four corners
  • Compact design with easy quick guardrail assemblage
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • No-marking wheels
  • Dual controls operation
  • The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
  • Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.
  • Conform to EN 280:2013

Working Conditions

  • Convention center
  • Auto stations and
  • Highway station
  • Business building
  • Gym
  • Airports
  • Hotel

Application Occasions

  1. Business decoration
  2. ceiling/fixture works
  3. industrial facilities maintenance
  4. lamps and lanterns replacement in halls
  5. maintenance of street lamp
  6. aerial photographs
  7. wall cleaning etc.

Safe & Stable

safety is the key concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.

Packing &Shipping

LCL: plywood case with steel pallet at bottom

FCL: 7PCS per 20GP by steel pallet with anti-dust covers

Delivery time is usually 30 days according to order qty. and models.
